ON/OFF switch installed internally! must check this out
--- By evans112682

link: http://wiinewz.com/forums/d2sun/78205-off-switch-installed-internally-must-check-out.html

I wanted to install the on/off switch for the D2Sun internally. here are some pics!! the switch is designed to stick to the outside of the case... ugly. this took some customizing and a little time,...........

here is the switch chip and how its installed. i removed the switch and smd's from the board.

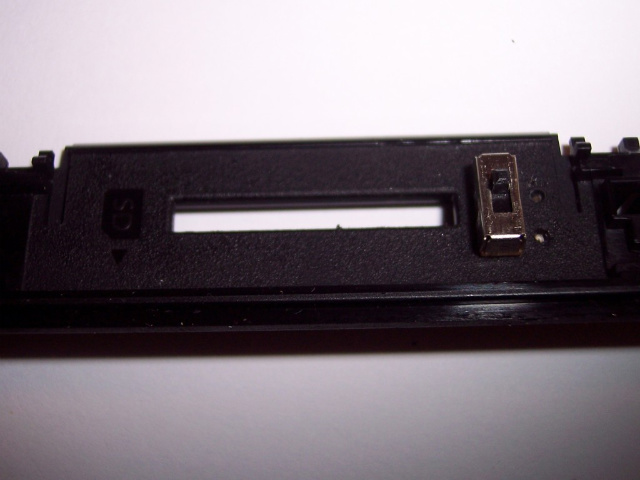

here i installed a similar 3 prong switch above the SD slot and wired it to the board...

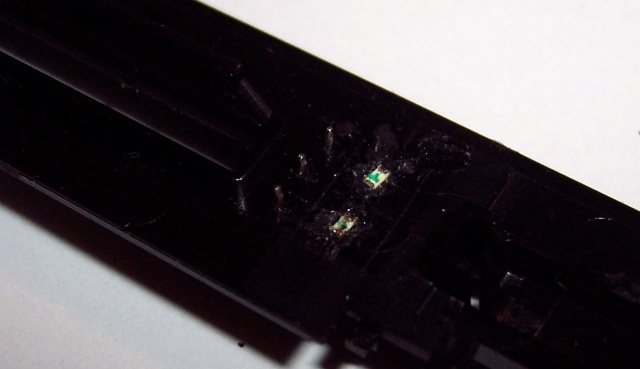

i made 2 small holes for the smd's and wired them in as well...

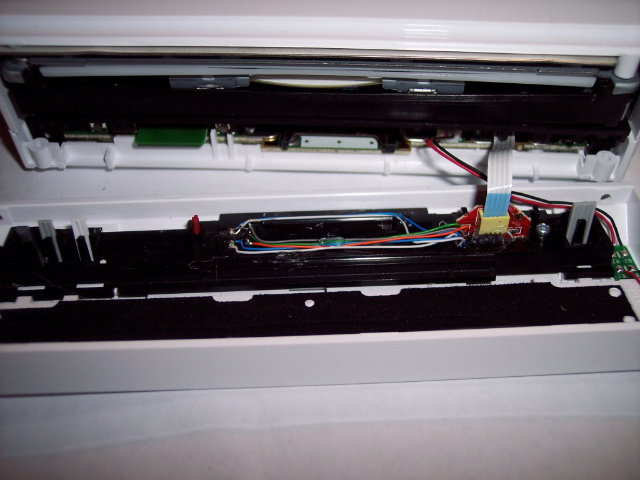

i made a spot for the board and tucked all my wires and ran the ribbon to the proper spot...

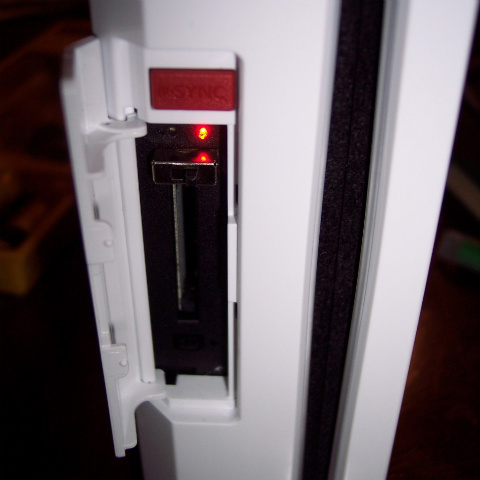

POWER OFF!

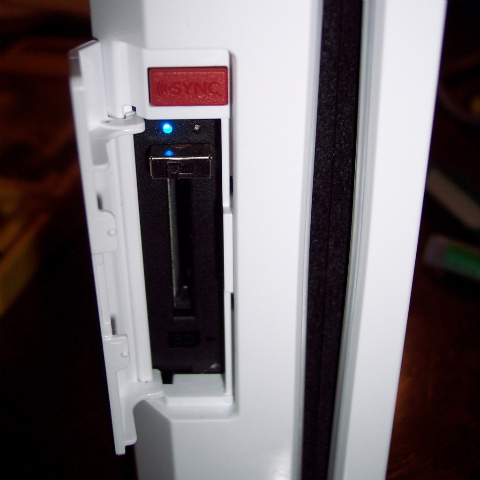

POWER ON!!!



all hidden behind the door...
